      Site-to-Site VPN with Safous Linux Agent

      Use Cases

      • Site-to-Site VPN between branch office and head office, or between remote sites and the data center (DC)

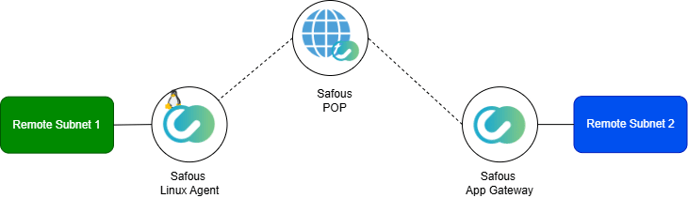

      Diagram

      (1) Remote Subnet 1
         --> (2) Linux Server with Safous Agent
         --> (3) Safous POP
         --> (4) Safous App Gateway
               --> (5) Remote Subnet 2



      Components to set up:

      1. Remote Subnet 1:
        Set the network gateway to the Linux Server running the Safous Agent.

      2. Linux Server with Safous Agent:
        Enable IP forwarding and set up tunneling using the Safous Agent.

      3. Safous POP:
        No configuration required by the user.

      4. Safous App Gateway:
        Configure the network applications in Remote Subnet 2 to be accessible by the Safous Agent.

      5. Remote Subnet 2:
        No configuration required by the user.

      How to

      On Safous App Gateway (via Admin Portal)

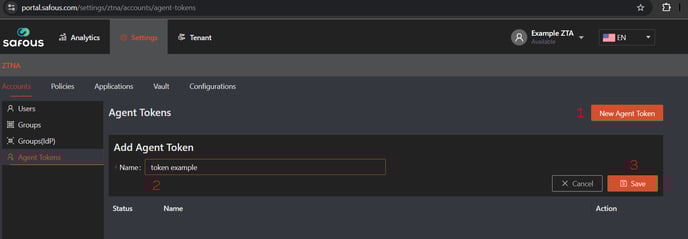

      • Create an Agent Token
        • Navigate to: Settings > Accounts > Agent Token > New Agent Token.
        • Enter a name for the token and click Save.

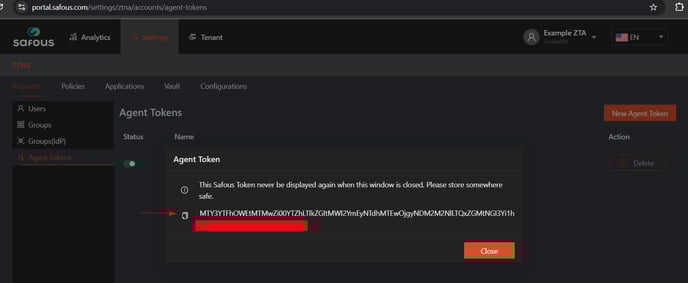

        • A new token will be generated—be sure to save it in a secure location, as it will only be shown once.

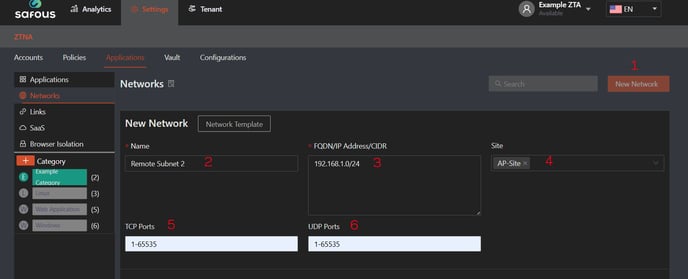

      • Create a Network Application
        • Add the subnet for Remote Subnet 2, including the relevant ports and site association.

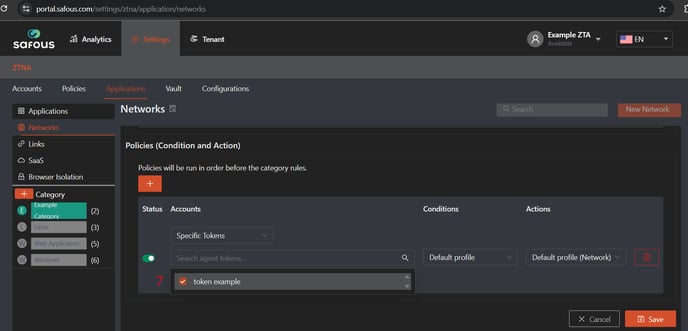

        • Define an access rule that allows the newly created agent token to access this network application.

      On Linux Server with Safous Agent

      • Log in to the user portal.

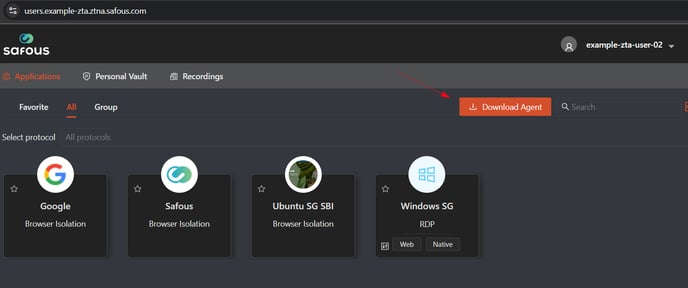

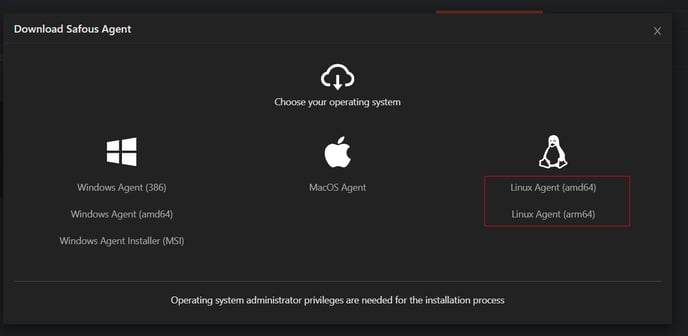

      • Click "Download Agent" and select the Linux Agent.

      • Transfer the file to your Linux server using scp or another tool.

      • Install the agent
      apt update
      apt install libayatana-appindicator3-1
      mv linux-amd64.deb <tenant>.ztna.safous.com.deb
      dpkg -i <tenant>.ztna.safous.com.deb
      • Authenticate and start tunneling
      cd /usr/local/share/cyolo/connect/
      ./connect auth login https://login.<tenant>.ztna.safous.com -k <Safous Agent Token>
      ./connect tunnel up
      ./connect tunnel status
      • Set the Linux Server as a Network Gateway
      sudo nano /etc/sysctl.conf
      net.ipv4.ip_forward = 1
      sudo systctl -p


      • Configure iptables (replace enp0s3 with your actual interface)
      sudo iptables -t nat -A POSTROUTING -o tun0 -j MASQUERADE
      sudo iptables -A FORWARD -i enp0s3 -o tun0 -j ACCEPT
      sudo iptables -A FORWARD -i tun0 -o enp0s3 -m state --state RELATED,ESTABLISHED -j ACCEPT
      • Verify routing
      netstat -nr

      Ensure that a route to Remote Subnet 2 exists via the tun0 interface.

      On Remote Subnet 1

      • Configure all machines in Remote Subnet 1 to use the IP address of the Linux Server’s local interface (enp0s3, for example) as their default gateway.
      • Note: Do not use the tun0 interface IP as the gateway.
